溶融亜鉛メッキ山形鋼

Tianjin Shunchen Industrial is a leading steel product manufacturer with 12 years of export experience, specializing in high-performance anti-corrosion steel products. Our core production base is located in Tianjin, China, equipped with 3 imported fully automatic hot-dip galvanizing production lines and a national-level material testing laboratory. We focus on R&D and production of thickened zinc layer galvanized angle steel, which is specially optimized for harsh corrosive environments such as coastal salt spray, industrial acid fog and chemical corrosion.

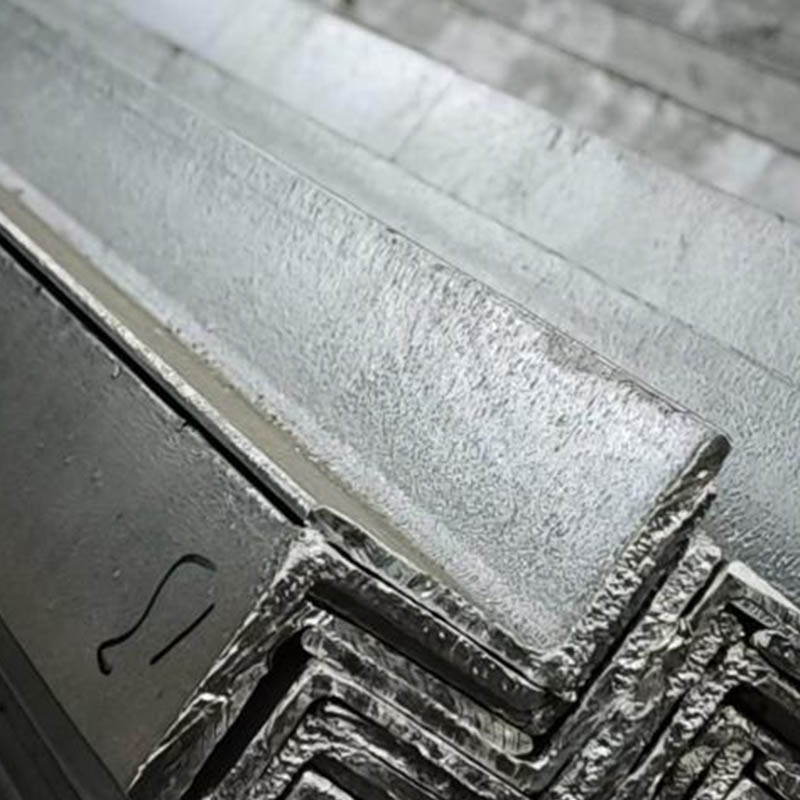

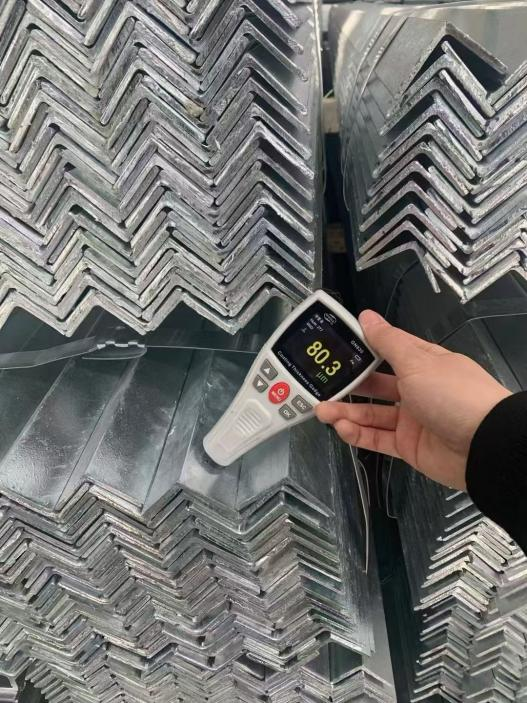

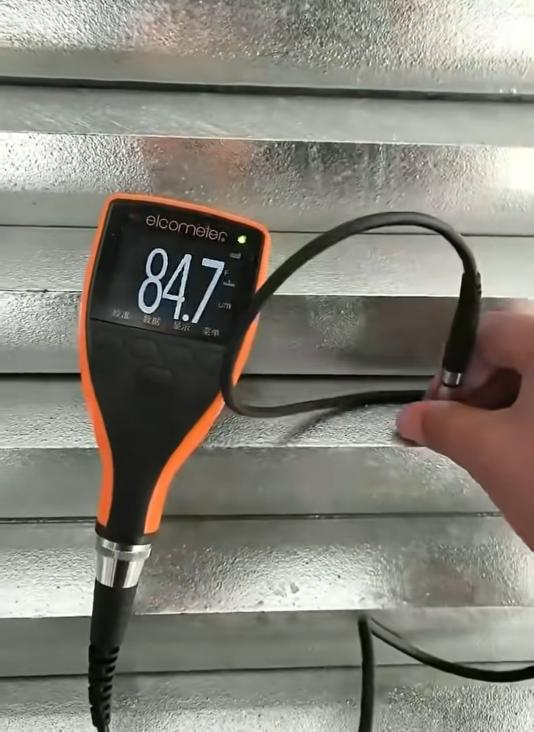

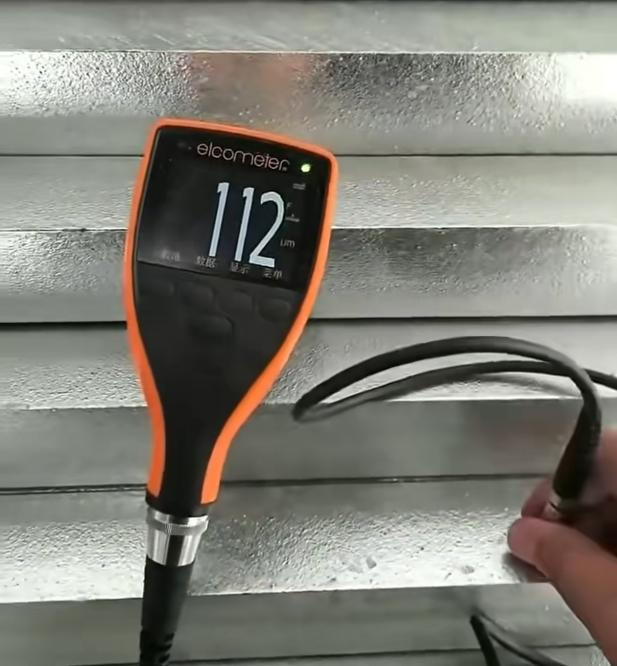

Unlike ordinary galvanized angle steel with 60-80g/m² thin and uneven zinc layer, our products adopt a high-temperature immersion process at 450-460℃ to form a metallurgical bond between zinc and steel, ensuring no peeling or falling off. Our quality control engineer Li Wei, with 10 years of experience in galvanized steel testing, personally supervises the full-process inspection of each batch of products, ensuring that the zinc layer thickness deviation is ≤5% and there is no missing plating. All products comply with GB, ASTM, EN and JIS standards, and can provide complete mill test certificates (MTC EN 10204 3.1) and third-party SGS/BV inspection reports.

Real-world Performance Testing

1. 12-Month Outdoor Natural Corrosion Test

Test Location: Tianjin Port coastal area (high salt spray environment, annual average salt content 0.03mg/m³)

Test Duration: 12 consecutive months, no shelter, exposed to sun, rain and sea breeze

Test Samples:

Black iron angle steel (no coating)

Ordinary hot-dip galvanized angle steel (80g/m² zinc layer)

Tianjin Shunchen thickened zinc layer angle steel (275g/m² zinc layer)

Key Findings:

Black iron angle steel: Large area red rust appeared in 3 months, corrosion depth reached 0.2mm in 12 months

Ordinary galvanized angle steel: Local red rust appeared in 6 months, 30% of the surface was corroded in 12 months

Tianjin Shunchen thickened zinc layer angle steel: No red rust in 12 months, only slight surface oxidation, zinc layer loss ≤10g/m²

2. Neutral Salt Spray Corrosion Test (Third-party SGS Test)

Test Standard: GB/T 10125-2012

Test Conditions: 5% NaCl solution, 35℃, continuous spray

Test Results:

| Zinc Layer Thickness | Time to First Red Rust |

|---|---|

| 80g/m² (ordinary) | 216 hours |

| 275g/m² (thickened) | 1080 hours |

| 450g/m² (heavy thickened) | 1800 hours |

| 600g/m² (super thickened) | 2400 hours |

3. Mechanical Property Verification Test

The thickened zinc layer process does not affect the mechanical properties of the steel substrate. The test results show that the tensile strength, yield strength and elongation of our products are all higher than the national standard requirements, and the welding performance is excellent. After welding, the zinc layer can be repaired with special zinc-rich paint, and the anti-corrosion effect is consistent with the original zinc layer.

Real-world User Scenarios & Verified Cases

Case 1: Coastal Power Transmission Project (State Grid Zhejiang Electric Power Co., Ltd.)

Industry: Power transmission and transformation

Problem: The original ordinary galvanized angle steel brackets in Ningbo coastal 500kV transmission tower project had serious corrosion after 3 years of use, requiring annual anti-corrosion maintenance, with high cost and potential safety hazards.

Solution: Adopt our 275g/m² thickened zinc layer equal angle steel (L70×70×6mm), and all welding joints are repaired with 96% zinc-rich paint.

Result: After 8 years of use, there is no obvious rust on the surface, and the expected service life can reach 25 years, reducing maintenance costs by 85%. Annual procurement volume reaches 1,200 tons, and cooperation has been ongoing for 6 years.

Case 2: Shenzhen Bay Coastal Guardrail Project (Shenzhen Municipal Engineering General Corporation)

Industry: Municipal construction

Problem: The ordinary galvanized guardrails in Shenzhen Bay Coastal Avenue had serious rust after 2 years of use, affecting the city appearance and requiring frequent replacement.

Solution: Adopt our 350g/m² thickened zinc layer unequal angle steel (L63×40×5mm), with electrostatic spraying on the surface.

Result: After 5 years of use, the guardrails are still intact without rust, and the replacement cycle is extended from 2 years to 20 years, saving more than 12 million yuan in total maintenance costs for the project.

Case 3: Sinopec Qilu Petrochemical Pipeline Support Project

Industry: Chemical industry

Problem: In the harsh acid fog environment of Zibo Chemical Park, ordinary galvanized angle steel supports had corrosion perforation after 1.5 years of use, which seriously threatened the safety of pipeline operation.

Solution: Adopt our 600g/m² super thick zinc layer equal angle steel (L100×100×10mm), with epoxy resin coating on the surface.

Result: After 6 years of use, there is no corrosion phenomenon, and the expected service life can reach 30 years, solving the long-standing corrosion problem of the plant.

Authentic Customer Reviews

"We have used Tianjin Shunchen's thickened zinc layer angle steel for 6 years in our coastal power transmission projects. The anti-corrosion effect is far better than that of previous suppliers. Their zinc layer thickness is very stable, and each batch is accompanied by a complete test report. They are our most reliable steel supplier."

—— Wang Jun, Project Manager, State Grid Zhejiang Electric Power Co., Ltd.

"The Shenzhen Bay guardrail project has extremely high requirements for appearance and corrosion resistance. Tianjin Shunchen's products have performed perfectly for 5 years without any rust. They not only saved us a lot of maintenance costs but also improved the city's landscape effect."

—— Zhang Ming, Procurement Manager, Shenzhen Municipal Engineering General Corporation

"In the harsh chemical environment of our plant, ordinary galvanized steel can only last 1-2 years. Tianjin Shunchen's 600g/m² super thick zinc layer angle steel has been used for 6 years without any corrosion. Their professional technical team also provided us with targeted anti-corrosion solutions, which is very reassuring."

—— Liu Tao, Equipment Director, Sinopec Qilu Petrochemical Company

Verified Product Parameters

(1) General Execution Standards

(2) Core Technical Parameters

(3) Chemical Composition (wt%)

(4) Mechanical Properties

Core Advantages

1.Real Test Data, No False Publicity: All anti-corrosion performance data comes from 12-month outdoor natural exposure test and third-party SGS salt spray test, which can be verified on site.

2.Thickened Zinc Layer, Long-term Anti-corrosion: The zinc layer thickness is 3-7 times that of ordinary galvanized angle steel, and the service life is extended to 20-30 years in harsh environments.

3.Advanced Technology, Uniform Zinc Layer: Fully automatic hot-dip galvanizing production line ensures uniform zinc layer adhesion, no missing plating and no peeling.

4.Stable Mechanical Properties, Good Weldability: The thickened zinc layer process does not affect the mechanical properties of the steel substrate, and special zinc layer repair materials are provided for welding joints.

5.Complete Qualifications, Guaranteed Quality: Passed ISO9001:2015 certification, can provide all necessary documents for customs clearance and project acceptance.

Suitable For

1.Coastal and offshore power transmission towers, substation brackets and lightning protection facilities

2.Municipal engineering guardrails, street light poles, billboard brackets and bridge accessories

3.Chemical parks, refineries, pharmaceutical factories and other industrial pipeline supports and equipment frames

4.Ports, docks, shipyards and other coastal steel structure projects

5.Building curtain walls, steel structure workshops and warehouse supports

6.Agricultural greenhouse frames, livestock breeding sheds and irrigation facilities

Why Choose Tianjin Shunchen?

Looking for a reliable thickened zinc layer galvanized angle steel supplier that can solve the corrosion problem in harsh environments? Choose Tianjin Shunchen Industrial—a product that has passed rigorous real-world corrosion tests, manufactured by a professional Chinese steel factory with 12 years of export experience.

We maintain 5,000 tons of ready stock of standard specifications, supporting fast delivery within 3-7 days. Our professional technical team can provide customized solutions for zinc layer thickness, size and surface treatment according to your project needs. We adhere to the factory direct sales model, ensuring the most competitive prices and stable quality. Contact us now to get a free quote and sample!
